DIYables ESP32 Web Apps Web Monitor
Overview

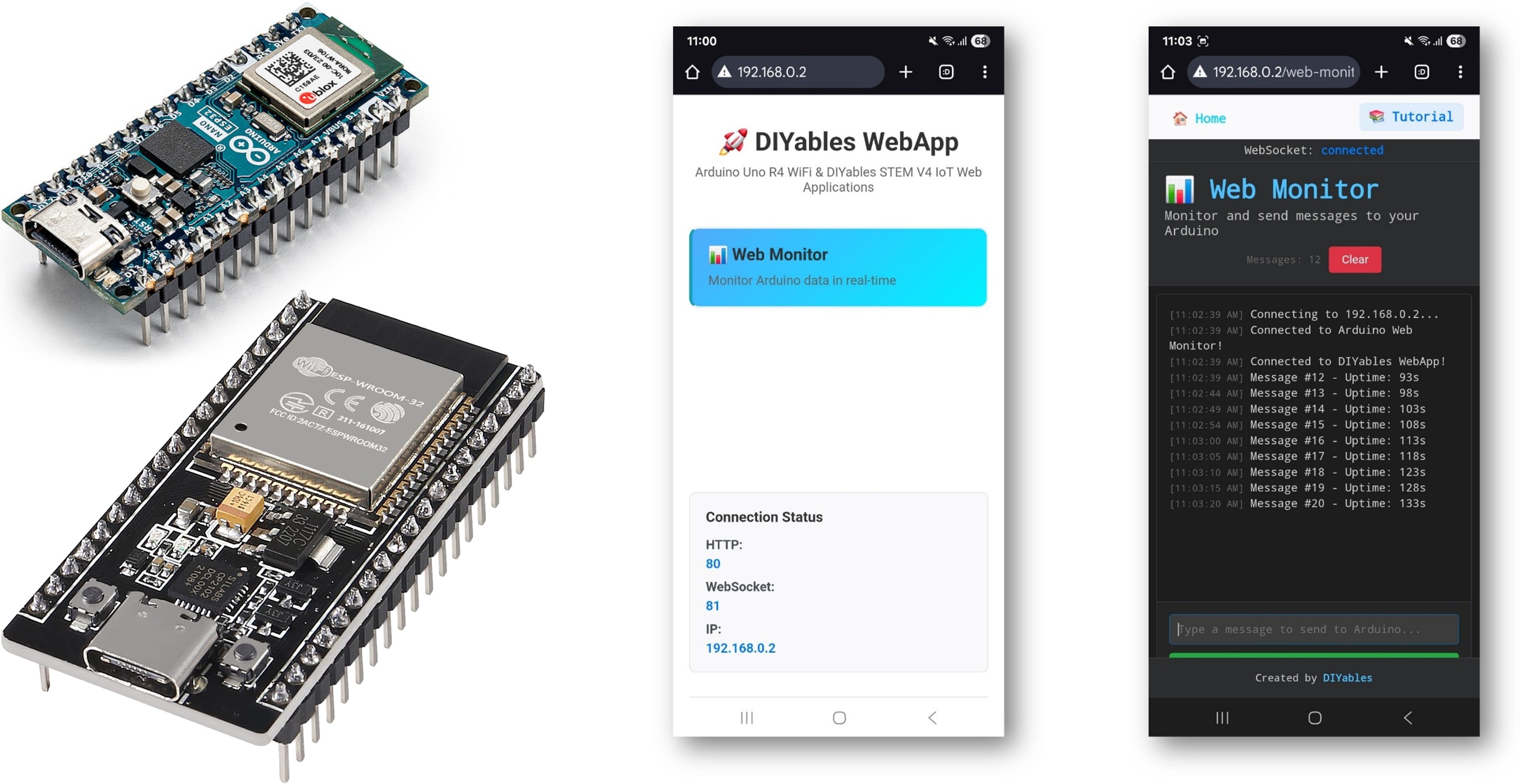

The WebMonitor example replaces the traditional Serial Monitor with a web-based interface that's accessible from any device on your network. Designed for ESP32 educational platform with enhanced IoT capabilities, built-in sensor monitoring, and seamless integration with the educational ecosystem.
Watch this step-by-step video tutorial demonstrating how to use WebMonitor with the DIYables ESP32 WebApps:
Features
- Real-time Serial Output: View ESP32 messages instantly in browser
- Command Input: Send commands from web interface to Arduino
- Dark Theme: Easy-on-eyes terminal-style interface
- Auto-scroll: Automatically scrolls to latest messages
- Timestamp: All messages include timestamps
- Command History: Navigate previous commands with arrow keys
- Clear Function: Clear the monitor display
- Copy/Paste: Full text selection and copying support
Hardware Used In This Tutorial
Or you can buy the following kits:
| 1 | × | DIYables ESP32 Starter Kit (ESP32 included) | |
| 1 | × | DIYables Sensor Kit (18 sensors/displays) |
Disclosure: Some of the links in this section are Amazon affiliate links, meaning we may earn a commission at no additional cost to you if you make a purchase through them. Additionally, some links direct you to products from our own brand, DIYables .
Setup Instructions
Quick Instructions
Follow these instructions step by step:
- If this is your first time using the ESP32, refer to the tutorial on setting up the environment for ESP32 in the Arduino IDE.
- Connect the ESP32 board to your computer using a USB cable.
- Launch the Arduino IDE on your computer.
- Select the appropriate ESP32 board (e.g. ESP32 Dev Module) and COM port.
- Navigate to the Libraries icon on the left bar of the Arduino IDE.
- Search "DIYables ESP32 WebApps", then find the DIYables ESP32 WebApps Library by DIYables
- Click Install button to install the library.
- You will be asked for installing some other library dependencies
- Click Install All button to install all library dependencies.
- On Arduino IDE, Go to File Examples DIYables ESP32 WebApps WebMonitor example, or copy the above code and paste it to the editor of Arduino IDE
/*
* DIYables WebApp Library - Web Monitor Example
*
* This example demonstrates the Web Monitor feature:
* - Real-time serial monitor in web browser
* - Send commands from browser to Arduino
* - Automatic message timestamping
*
* Hardware: ESP32 Boards
*
* Setup:
* 1. Update WiFi credentials below
* 2. Upload the sketch to your Arduino
* 3. Open Serial Monitor to see the IP address
* 4. Navigate to http://[IP_ADDRESS]/webmonitor
*/
#include <DIYables_ESP32_Platform.h>
#include <DIYablesWebApps.h>
// WiFi credentials - UPDATE THESE WITH YOUR NETWORK
const char WIFI_SSID[] = "YOUR_WIFI_SSID";
const char WIFI_PASSWORD[] = "YOUR_WIFI_PASSWORD";
// Create WebApp server and page instances
ESP32ServerFactory serverFactory;
DIYablesWebAppServer webAppsServer(serverFactory, 80, 81);
DIYablesHomePage homePage;
DIYablesWebMonitorPage webMonitorPage;
// Demo variables
unsigned long lastMessage = 0;
int messageCount = 0;
void setup() {
Serial.begin(9600);
delay(1000);
Serial.println("DIYables ESP32 WebApp - Web Monitor Example");
// Add home and web monitor pages
webAppsServer.addApp(&homePage);
webAppsServer.addApp(&webMonitorPage);
// Optional: Add 404 page for better user experience
webAppsServer.setNotFoundPage(DIYablesNotFoundPage());
// Initialize LED for status indication
pinMode(LED_BUILTIN, OUTPUT);
// Start the WebApp server
if (!webAppsServer.begin(WIFI_SSID, WIFI_PASSWORD)) {
while (1) {
Serial.println("Failed to start WebApp server!");
delay(1000);
}
}
// Set up monitor callback for incoming commands
webMonitorPage.onWebMonitorMessage([](const String& message) {
Serial.println("Command from web: " + message);
// Process simple commands
if (message == "LED_ON") {
digitalWrite(LED_BUILTIN, HIGH);
webMonitorPage.sendToWebMonitor("LED turned ON");
return;
}
if (message == "LED_OFF") {
digitalWrite(LED_BUILTIN, LOW);
webMonitorPage.sendToWebMonitor("LED turned OFF");
return;
}
if (message == "STATUS") {
String status = "Arduino Status: LED=" + String(digitalRead(LED_BUILTIN) ? "ON" : "OFF");
webMonitorPage.sendToWebMonitor(status);
return;
}
if (message == "HELP") {
webMonitorPage.sendToWebMonitor("Available commands: LED_ON, LED_OFF, STATUS, HELP");
return;
}
webMonitorPage.sendToWebMonitor("Unknown command: " + message);
});
// Send welcome message
webMonitorPage.sendToWebMonitor("Arduino Web Monitor ready!");
webMonitorPage.sendToWebMonitor("Type HELP for available commands");
}
void loop() {
// Handle WebApp server communications
webAppsServer.loop();
// Send periodic updates to web monitor
if (millis() - lastMessage > 5000) { // Every 5 seconds
messageCount++;
// Send sensor readings or status updates
String message = "Message #" + String(messageCount) + " - Uptime: " + String(millis() / 1000) + "s";
webMonitorPage.sendToWebMonitor(message);
lastMessage = millis();
}
// Add your main application code here
delay(10);
}
- Configure WiFi credentials in the code by updating these lines:
const char WIFI_SSID[] = "YOUR_WIFI_NETWORK";
const char WIFI_PASSWORD[] = "YOUR_WIFI_PASSWORD";
- Click Upload button on Arduino IDE to upload code to ESP32
- Open the Serial Monitor
- Check out the result on Serial Monitor. It looks like the below
8
Serial.println("Hello World!");
Message (Enter to send message to 'ESP32 Dev Module' on 'COM15')
New Line
9600 baud
DIYables WebApp - Web Monitor Example
INFO: Added app /
INFO: Added app /web-monitor
DIYables WebApp Library
Platform: ESP32
Network connected!
IP address: 192.168.0.2
HTTP server started on port 80
Configuring WebSocket server callbacks...
WebSocket server started on port 81
WebSocket URL: ws://192.168.0.2:81
WebSocket server started on port 81
==========================================
DIYables WebApp Ready!
==========================================
📱 Web Interface: http://192.168.0.2
🔗 WebSocket: ws://192.168.0.2:81
📋 Available Applications:
🏠 Home Page: http://192.168.0.2/
📊 Web Monitor: http://192.168.0.2/web-monitor
==========================================
- If you do not see anything, reboot ESP32 board.
- Take note of the IP address displayed, and enter this address into the address bar of a web browser on your smartphone or PC.
- Example: http://192.168.0.2

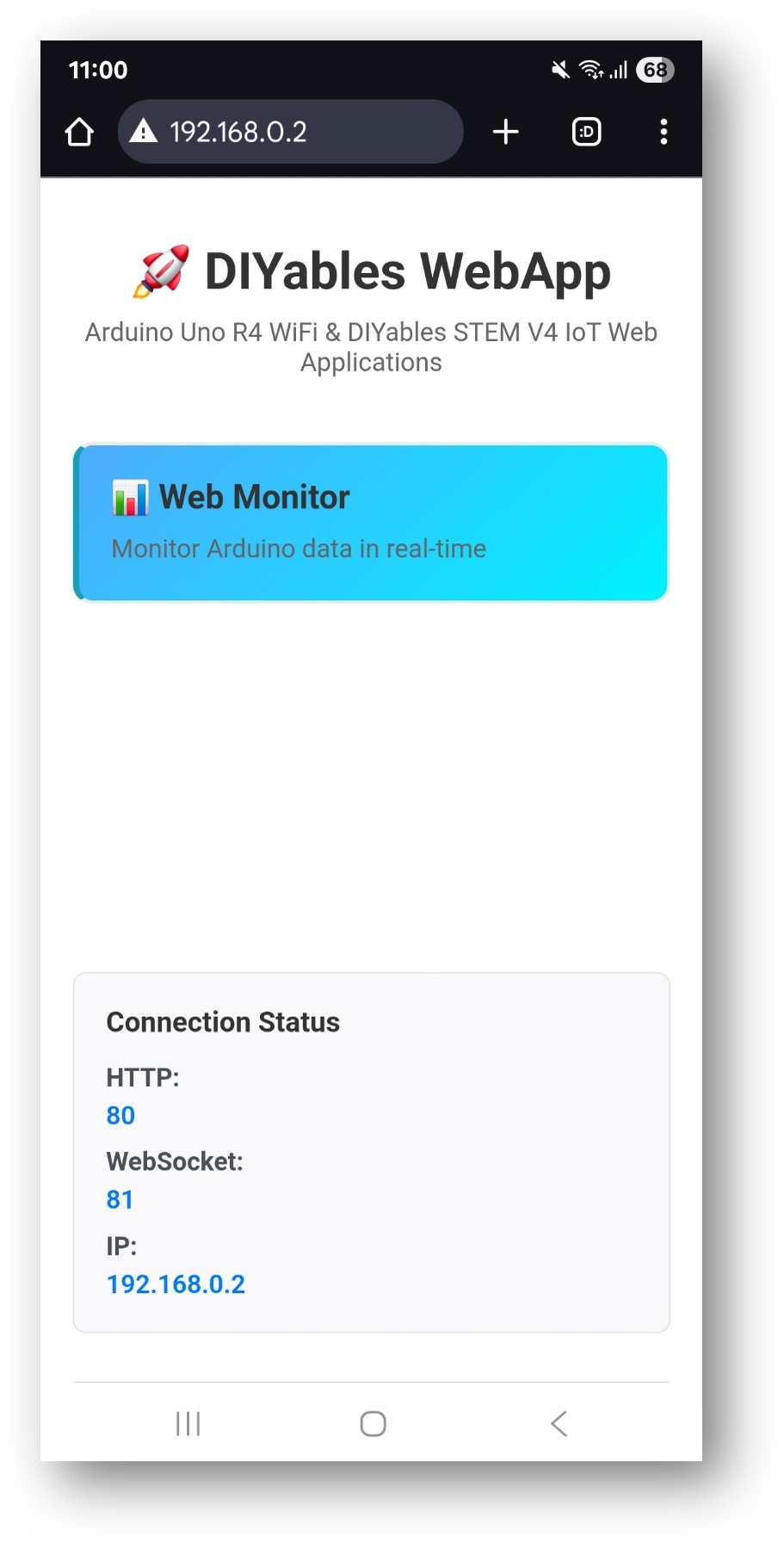

- You will see the home page like below image:

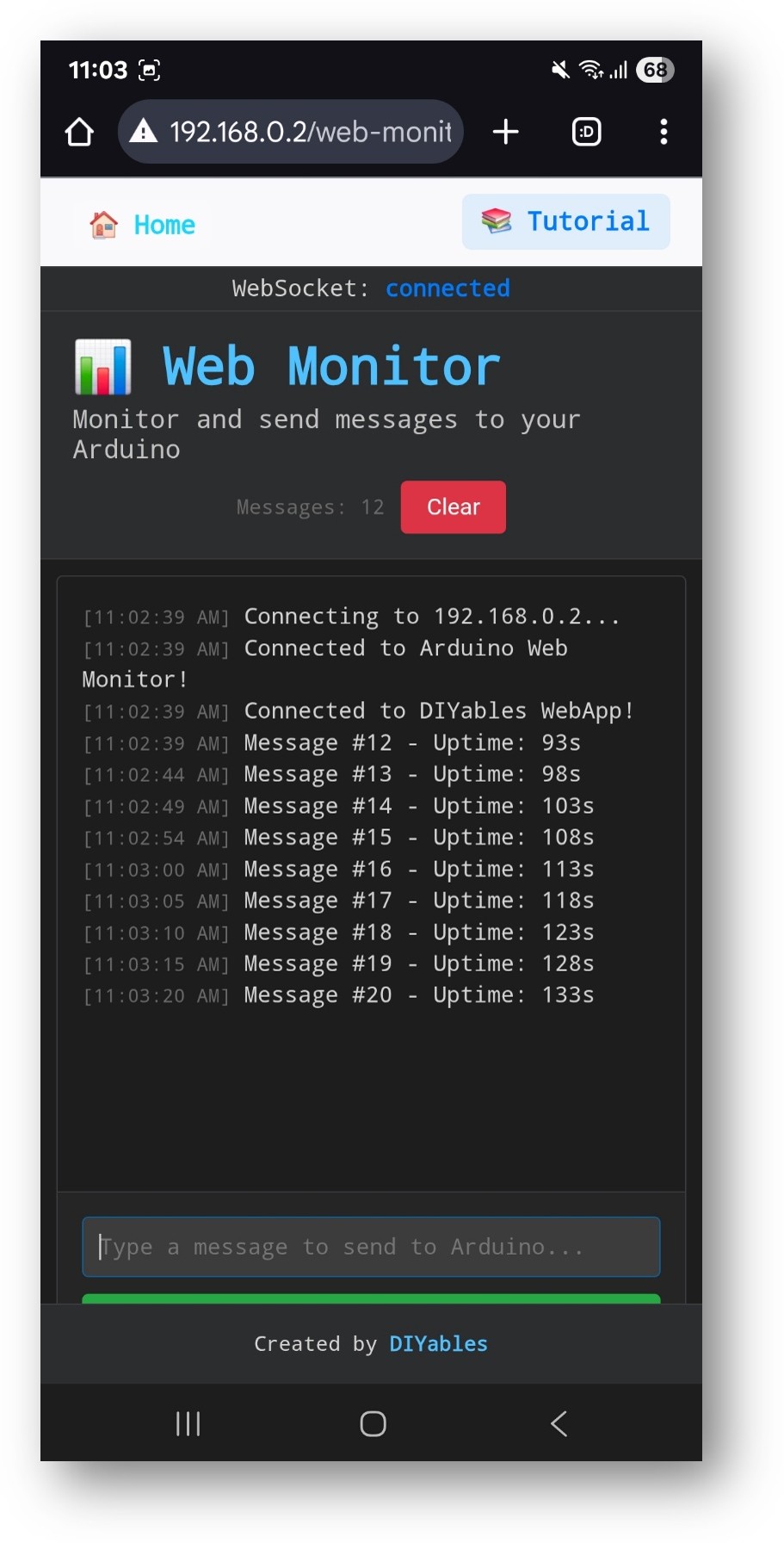

- Click to the Web Monitor link, you will see the Web Monitor app's UI like the below:
- Or you can also access the page directly by IP address followed by /web-monitor. For example: http://192.168.0.2/web-monitor
- Try sending commands to your ESP32 through the web monitor interface and view real-time serial output from your Arduino.
How to Use
Viewing Serial Output
- Open the web monitor interface
- ESP32 automatically sends status messages every 5 seconds
- All Serial.println() output appears in the monitor
- Messages are timestamped automatically
Sending Commands
- Type commands in the input field at the bottom
- Press Enter or click Send button
- ESP32 processes the command and responds
Built-in Commands
The example includes these demonstration commands:
LED Control
- "led on" → Turns on built-in LED
- "led off" → Turns off built-in LED
- "led toggle" → Toggles LED state
- "blink" → Blinks LED 3 times
System Commands
- "status" → Shows ESP32 status and uptime
- "help" → Lists available commands
- "reset counter" → Resets message counter
- "memory" → Shows free memory information
Debug Commands
- "test" → Sends test message
- "echo [message]" → Echoes back your message
- "repeat [n] [message]" → Repeats message n times
Interface Features
Keyboard Shortcuts
- Enter → Send command
- ↑/↓ Arrow Keys → Navigate command history
- Ctrl+L → Clear monitor (if implemented)
- Ctrl+A → Select all text
Monitor Controls
- Auto-scroll → Automatically scrolls to new messages
- Clear → Clears the monitor display
- Copy → Copy selected text to clipboard
Creative Customization - Build Your Advanced Debugging Tool
Expand this web monitor example to create a powerful debugging and control interface for your projects! Add custom commands, sensor monitoring, and real-time data visualization to suit your creative needs.
Code Structure
Main Components
- WebApp Server: Handles HTTP and WebSocket connections
- Monitor Page: Provides terminal-style web interface
- Message Handler: Processes incoming commands
- Serial Bridge: Forwards Serial output to web interface
Key Functions
// Handle commands from web interface
void handleWebCommand(String command, String clientId) {
// Process command and execute actions
}
// Send message to web monitor
void sendToWebMonitor(String message) {
// Forward message via WebSocket
}
Adding Custom Commands
To add new commands, modify the handleWebCommand function:
if (command.startsWith("your_command")) {
// Extract parameters
String param = command.substring(12); // After "your_command"
// Execute your action
digitalWrite(LED_BUILTIN, HIGH);
// Send response
sendToWebMonitor("Command executed: " + param);
}
Practical Applications
Development and Debugging
void loop() {
// Debug sensor readings
int sensorValue = analogRead(A0);
sendToWebMonitor("Sensor A0: " + String(sensorValue));
// Debug variables
sendToWebMonitor("Loop count: " + String(loopCount++));
delay(1000);
}
Remote System Monitoring
void checkSystemHealth() {
// Monitor memory
int freeMemory = getFreeMemory();
sendToWebMonitor("Free memory: " + String(freeMemory) + " bytes");
// Monitor sensors
float temperature = getTemperature();
sendToWebMonitor("Temperature: " + String(temperature) + "°C");
// Monitor connectivity
if (WiFi.status() == WL_CONNECTED) {
sendToWebMonitor("WiFi: Connected (RSSI: " + String(WiFi.RSSI()) + ")");
} else {
sendToWebMonitor("WiFi: Disconnected");
}
}
Configuration Management
// Handle configuration commands
if (command.startsWith("config ")) {
String setting = command.substring(7);
if (setting.startsWith("interval ")) {
int interval = setting.substring(9).toInt();
updateInterval = interval * 1000; // Convert to milliseconds
sendToWebMonitor("Update interval set to " + String(interval) + " seconds");
}
if (setting == "save") {
saveConfigToEEPROM();
sendToWebMonitor("Configuration saved to EEPROM");
}
}
Advanced Features
Message Filtering
Add message types and filtering:
enum MessageType { INFO, WARNING, ERROR, DEBUG };
void sendToWebMonitor(String message, MessageType type = INFO) {
String prefix;
switch(type) {
case WARNING: prefix = "[WARN] "; break;
case ERROR: prefix = "[ERROR] "; break;
case DEBUG: prefix = "[DEBUG] "; break;
default: prefix = "[INFO] ";
}
webMonitorPage.sendMessage(prefix + message);
}
Command Parsing
Implement sophisticated command parsing:
struct Command {
String name;
String parameters[5];
int paramCount;
};
Command parseCommand(String input) {
Command cmd;
int spaceIndex = input.indexOf(' ');
if (spaceIndex > 0) {
cmd.name = input.substring(0, spaceIndex);
// Parse parameters...
} else {
cmd.name = input;
cmd.paramCount = 0;
}
return cmd;
}
Data Logging
Log monitor data to SD card or EEPROM:
#include <SD.h>
void logMessage(String message) {
File logFile = SD.open("monitor.log", FILE_WRITE);
if (logFile) {
logFile.print(millis());
logFile.print(": ");
logFile.println(message);
logFile.close();
}
}
Troubleshooting
Common Issues
1. No output in web monitor
- Check Serial.begin() is called in setup()
- Verify WebSocket connection (green status indicator)
- Check browser console for errors
2. Commands not working
- Ensure commands are exactly as specified
- Check command case sensitivity
- Look for response messages in monitor
3. Interface loading slowly
- Check WiFi signal strength
- Reduce message frequency
- Clear browser cache
4. WebSocket disconnections
- Check network stability
- Reduce message size
- Implement reconnection logic
Debug Tips
Enable detailed debugging:
#define DEBUG_WEBMONITOR 1
#if DEBUG_WEBMONITOR
#define DEBUG_PRINT(x) Serial.print(x)
#define DEBUG_PRINTLN(x) Serial.println(x)
#else
#define DEBUG_PRINT(x)
#define DEBUG_PRINTLN(x)
#endif
Monitor WebSocket status:
void checkWebSocketStatus() {
if (server.getClientCount() > 0) {
sendToWebMonitor("WebSocket clients connected: " + String(server.getClientCount()));
}
}
Security Considerations
Command Validation
Always validate incoming commands:
bool isValidCommand(String command) {
// Check command length
if (command.length() > 100) return false;
// Check for dangerous characters
if (command.indexOf("\\") >= 0 || command.indexOf("/") >= 0) return false;
// Check against whitelist
String allowedCommands[] = {"led", "status", "help", "test"};
String cmdName = command.substring(0, command.indexOf(' '));
for (String allowed : allowedCommands) {
if (cmdName.equals(allowed)) return true;
}
return false;
}
Access Control
Implement basic authentication:
bool isAuthorized(String clientId) {
// Check client authorization
return authorizedClients.indexOf(clientId) >= 0;
}
Integration Examples
Sensor Monitoring System
void monitorSensors() {
static unsigned long lastSensorRead = 0;
if (millis() - lastSensorRead > 5000) {
// Read multiple sensors
int light = analogRead(A0);
int temp = analogRead(A1);
int humidity = analogRead(A2);
// Send formatted data
String data = "Sensors - Light: " + String(light) +
", Temp: " + String(temp) +
", Humidity: " + String(humidity);
sendToWebMonitor(data);
lastSensorRead = millis();
}
}
Home Automation Monitor
void monitorHome() {
// Door sensors
if (digitalRead(DOOR_SENSOR) == HIGH) {
sendToWebMonitor("ALERT: Front door opened");
}
// Motion detection
if (digitalRead(PIR_SENSOR) == HIGH) {
sendToWebMonitor("Motion detected in living room");
}
// Environmental monitoring
float temp = dht.readTemperature();
if (temp > 25.0) {
sendToWebMonitor("WARNING: Temperature high (" + String(temp) + "°C)");
}
}
ESP32 WebMonitor with DIYables ESP32 WebApps
The below code is an adaptation of the WebMonitor example, and the result is shown in the video demo below:
#include <DIYables_ESP32_Platform.h>
#include <DIYablesWebApps.h>
// WiFi credentials - UPDATE THESE WITH YOUR NETWORK
const char WIFI_SSID[] = "Nhuan 3";
const char WIFI_PASSWORD[] = "15671108";
#define LED_BUILTIN 2
// Create WebApp server and page instances
ESP32ServerFactory serverFactory;
DIYablesWebAppServer webAppsServer(serverFactory, 80, 81);
DIYablesHomePage homePage;
DIYablesWebMonitorPage webMonitorPage;
// Demo variables
unsigned long lastMessage = 0;
int messageCount = 0;
void setup() {
Serial.begin(9600);
delay(1000);
Serial.println("DIYables ESP32 WebApp - Web Monitor Example");
// Add home and web monitor pages
webAppsServer.addApp(&homePage);
webAppsServer.addApp(&webMonitorPage);
// Optional: Add 404 page for better user experience
webAppsServer.setNotFoundPage(DIYablesNotFoundPage());
// Initialize LED for status indication
pinMode(LED_BUILTIN, OUTPUT);
// Start the WebApp server
if (!webAppsServer.begin(WIFI_SSID, WIFI_PASSWORD)) {
while (1) {
Serial.println("Failed to start WebApp server!");
delay(1000);
}
}
// Set up monitor callback for incoming commands
webMonitorPage.onWebMonitorMessage([](const String& message) {
Serial.println("Command from web: " + message);
// Process simple commands
if (message == "LED_ON") {
digitalWrite(LED_BUILTIN, HIGH);
webMonitorPage.sendToWebMonitor("LED turned ON");
return;
}
if (message == "LED_OFF") {
digitalWrite(LED_BUILTIN, LOW);
webMonitorPage.sendToWebMonitor("LED turned OFF");
return;
}
if (message == "STATUS") {
String status = "Arduino Status: LED=" + String(digitalRead(LED_BUILTIN) ? "ON" : "OFF");
webMonitorPage.sendToWebMonitor(status);
return;
}
if (message == "HELP") {
webMonitorPage.sendToWebMonitor("Available commands: LED_ON, LED_OFF, STATUS, HELP");
return;
}
webMonitorPage.sendToWebMonitor("Unknown command: " + message);
});
// Send welcome message
webMonitorPage.sendToWebMonitor("Arduino Web Monitor ready!");
webMonitorPage.sendToWebMonitor("Type HELP for available commands");
}
void loop() {
// Handle WebApp server communications
webAppsServer.loop();
// Send periodic updates to web monitor
if (millis() - lastMessage > 5000) { // Every 5 seconds
messageCount++;
// Send sensor readings or status updates
String message = "Message #" + String(messageCount) + " - Uptime: " + String(millis() / 1000) + "s";
webMonitorPage.sendToWebMonitor(message);
lastMessage = millis();
}
// Add your main application code here
delay(10);
}
Next Steps
After mastering the WebMonitor example, try:
- Chat - For interactive communication
- DigitalPins - For controlling outputs
- Slider - For analog value control
- MultipleWebApps - Combining monitoring with control
Support
For additional help:
- Check the API Reference documentation
- Visit DIYables tutorials: https://esp32io.com/tutorials/diyables-esp32-webapps
- ESP32 community forums
